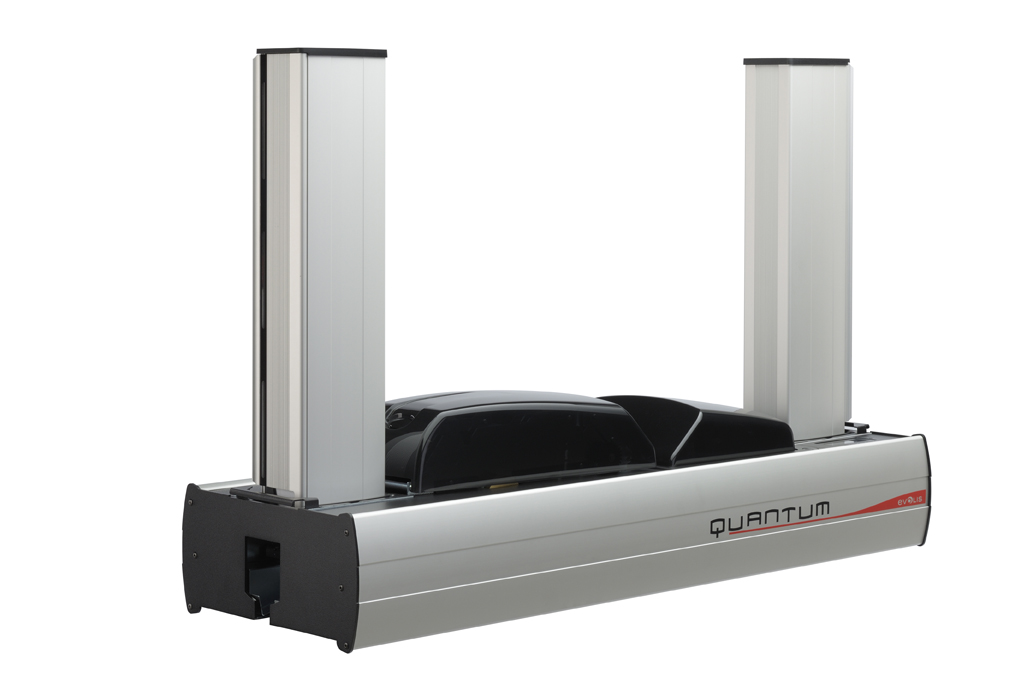

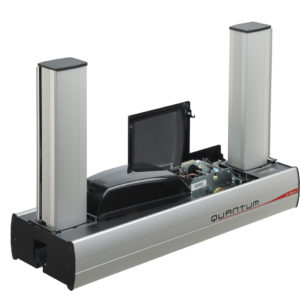

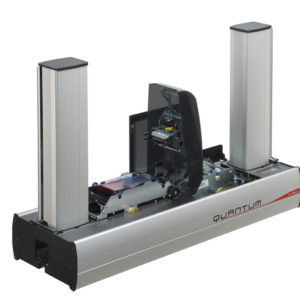

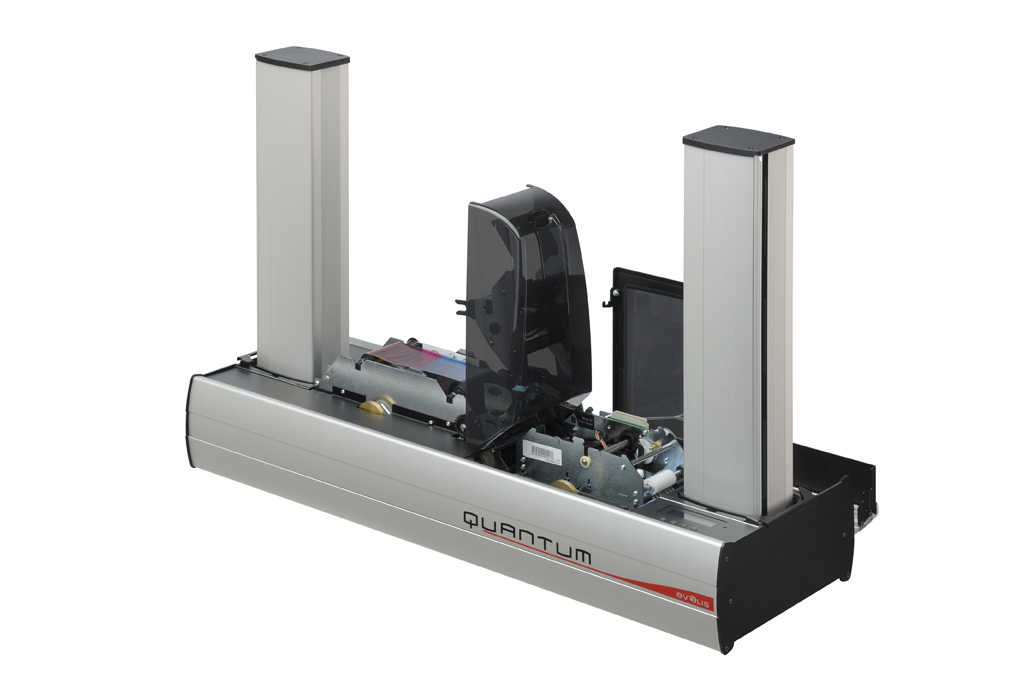

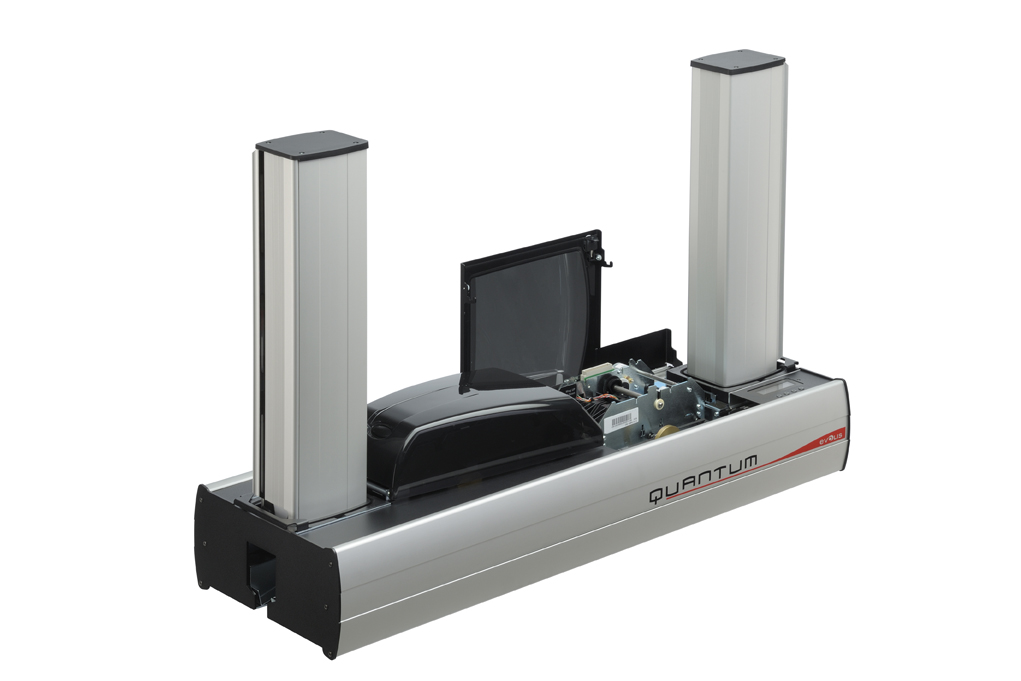

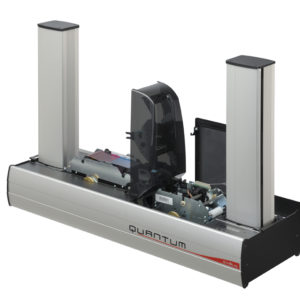

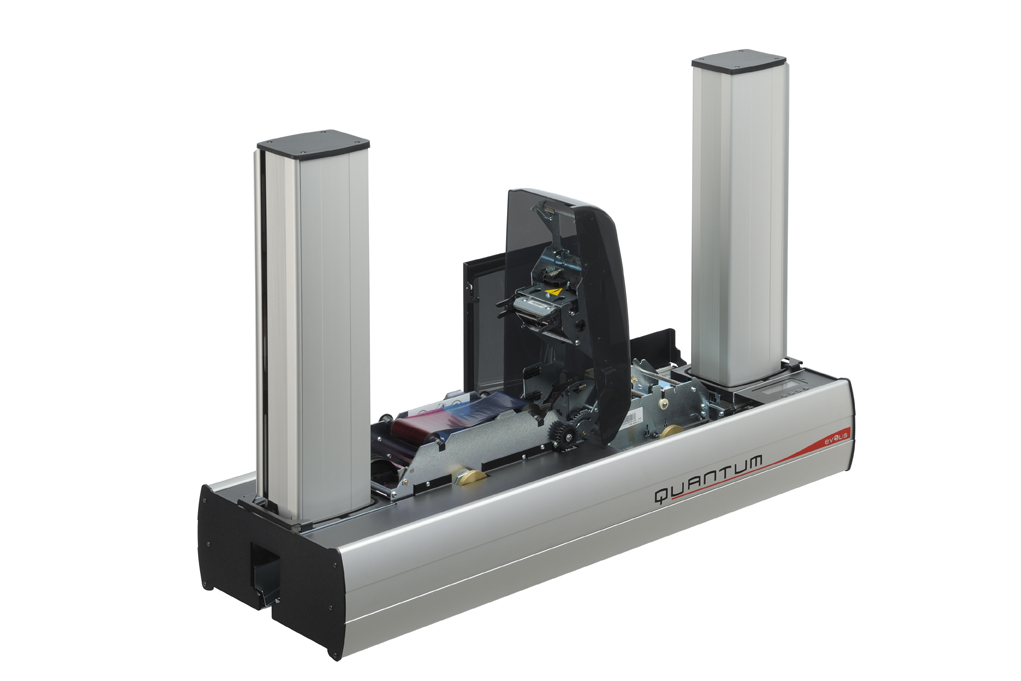

Combining the power of an industrial machine with the flexibility of a desktop printer, the Evolis Quantum 2 dual-sided printer offers versatility and modularity for any organization requiring high-volume printing of plastic ID cards. With the ability to be customized on-site by the user, the Evolis Quantum 2 dual-sided printer is easily scaled to meet evolving card personalization needs.
Product Features
-
- Standard encoding
The Evolis Quantum 2 printer will speed up the card personalization process for your organization with its exclusive detachable and reversible encoding unit. The encoding unit is versatile enough to combine magnetic, smart contact and contactless encoders – all in a single unit – and allows you to print and encode cards without flipping the cards over. Plus, almost any smart chip encoder can be upgraded on-site by simply connecting to a dedicated electronic panel. The Evolis Quantum 2 printer is ideal for an organization whose needs may change and evolve.
-
- High performance

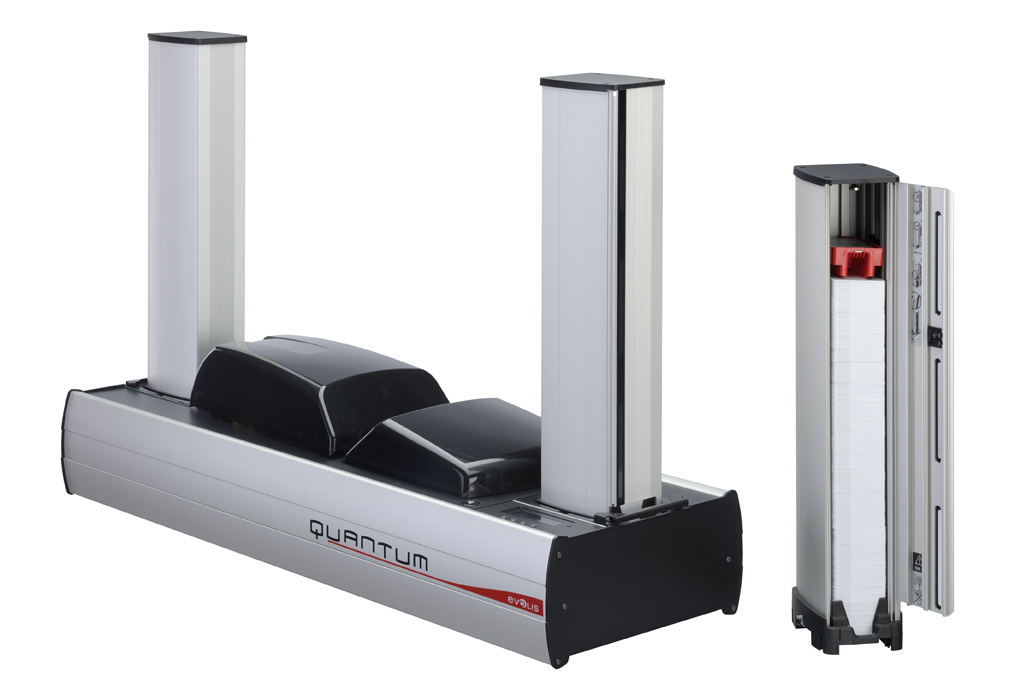

The modular design of the Quantum 2 plastic card printer speeds up the card personalization process by encoding and printing cards simultaneously. Two detachable card hoppers with a capacity of 500 cards each allow it to deliver 1,000 personalized cards per hour in monochrome, and more than 150 full-color cards per hour.
-
- Easy to use and maintain
The Quantum 2 plastic card printer’s 2-line LCD and status LED offer the user helpful operating alerts. An airtight metal body offers full protection against dust which, along with a new advanced cleaning process with top and bottom dual cleaning rollers, makes the Quantum 2 reliable and easy to use.
-
- Optional encoding upgrades
While magnetic stripe and smart card encoding come standard, you can assemble your own encoder, thanks to the easy-to-access connecting board.
Ideal Applications
- Medium- to large-sized corporations
- Healthcare facilities
- Recreational facilities (membership & loyalty cards)
- Government facilities
- High School Student IDs & College Student Ids
Specifications
General features
- 2 configurations:
- Standard version without locking mechanism
- Version with centralized locking system
- Direct-to-card dye-sublimation/Resin thermal transfer
- Single-sided and dual-sided printing module
- Edge-to-edge printing
- 300 dpi print head (11.8 dots/mm)
- 16MB memory (RAM) allowing two card storages (front & back)
- Interchangeable input and output hoppers, capacity of 500 cards each (0.76 mm – 30 mil)
- Aluminum body, black plastic covers
Printing performances
- Single side:
- Color (YMCKO): 150 cards/hour
- Monochrome: 1000 cards/hour
- Dual side:
- Color (YMCKO-K): 115 cards/hour
- Monochrome: 320 cards/hour
Additional pack offer
- Quantum Production Pack: 1 detachable card hopper with short door, 2 cleaning rollers, 1 cleaning kit
- Quantum Backup Pack: 1 print head, 1 reversible encoding module, 1 detachable card hopper with short door

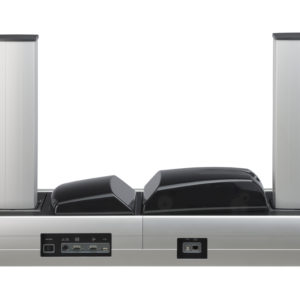

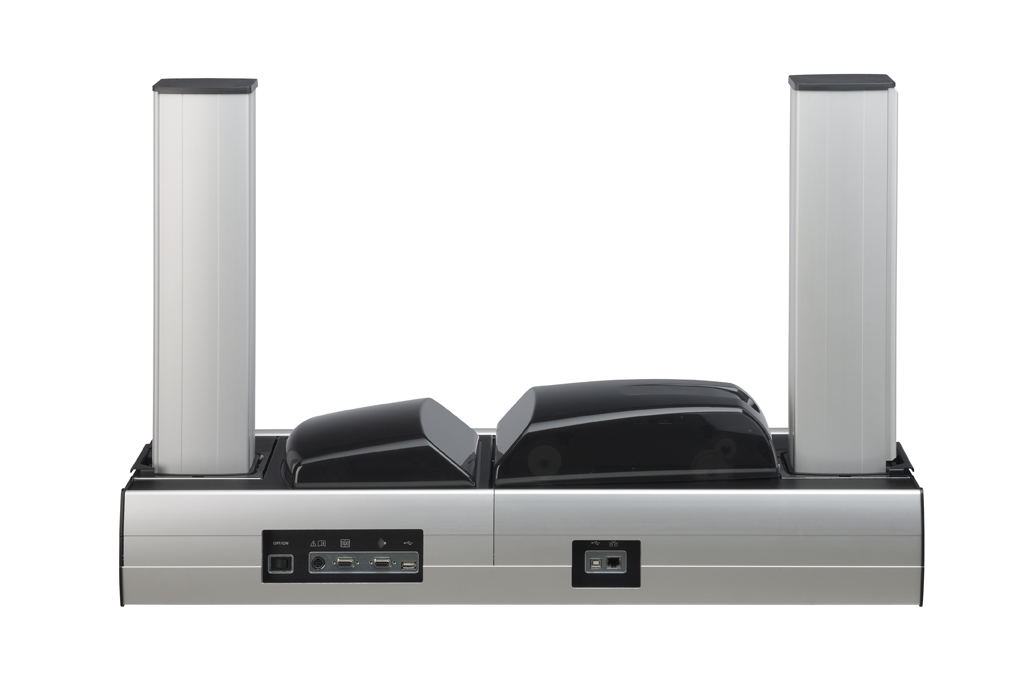

Interfaces
- USB (1.0, 1.1, 2.0, 3.0), cable supplied
- Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
Safety
- Centralized locking system (optional) to secure access to the whole system (incl. cards and ribbon)
Display
- 2-line LCD display
- Status LED for printer and encoding unit monitoring
Additional encoding modules
- Reversible upper and lower encoding unit for magnetic stripes and contact smart cards (patented)
- HiCo/LoCo magnetic stripe encoder ISO 7811 or JIS2
- Smart contact station – ISO 7816-2
- Connecting panel and mounting area for users own integration of encoding units
- Encodng options:
- Smart encoding unit – PC/SC, EMV 2000-1
- Contactless encoding unit – ISO14443A & B, Mifare, DesFire, HID iCLASS
- Other types upon request
Card management and specifications
- Detachable and interchangeable card input feeder and output stacker with 500 cards capacity (0.76 mm – 30 mil)
- Reject hopper for defective cards with a capacity of 20 cards (0,76mm – 30mil)
- Detachable hopper (long or short doors) with a capacity of 500 cards (0.76 mm – 30 mil) as an option
- Card types:
- PVC cards
- Composite PVC cards
- PET cards
- ABS cards1
- Special varnished cards1
- Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)
- Thickness: 0.76mm to 1mm (30 to 40 mil)
Evolis High Trust® ribbons
To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.
- Ribbon saver for monochrome printing
| Ribbons |
Ribbon capacities |
| YMCKO |
500 prints / roll |
| YMCKO-K |
500 prints / roll |
| ½ YMCKO |
400 prints / roll |
| KO |
500 prints / roll |
| Black monochrome ribbon |
3000 prints / roll |
| BlackFLEX (for ABS & special varnished cards) |
1000 prints / roll |
| Red, green, blue, white, gold, silver, scratch-off, signature panel |
1000 prints / roll |
| Hologram varnish |
350 prints / roll |
Software
- Delivered with cardPresso XXS for designing and editing badges:
- Internal database (unlimited records)
- Windows® (from XP onwards) and Mac OS X
- Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10
- Mac OS X v10.4 and higher (upon request)
- Linux (upon request)
Certifications and statement of compliance
- RoHS
- CE, FCC, VCCI, ICES
- EAC2
Size and weight
- Size (H x W x D):
- Without hoppers: 215 x 300 x 850 mm (8.46” x 11.81” x 33.46”)
- With hoppers: 567 x 300 x 850 mm (22.32” x 11.81” x 33.46”)
- Weight: 21.7 kg / 47.8 lbs (18.3 kg / 40.3 lbs without hoppers)
Warranty
- 1-year warranty (printer and print head) limited to 500,000 passes)3
- Warranty extension available as an option
1 Under specific conditions / 2 Depending on the printer model / 3 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons. An insertion is equivalent to printing a card on one side, or encoding it.
